Emerald BPS – Sticker Breakout detection and mould thermal visualization system.
When compared to well-know system, "Emerald BPS" shows always superiority, on all points of view.
calculations features
The calculations, unlike classical system, are based on the possible combined metallurgical behaviors of the curves...
interface features
For each of the strands, a computer (INTEL Nuc type) is installed in the control room of the caster, with a 16:9 Full HD 1080P screen...
system/hardware
The EMERALD system runs under Windows Server 2012, on redundant computers...
acquisition system
Even though it is possible to install a classical acquisition system (S7 ET-200 for example), EBDS Engineering has developed its own data acquisition system...
Calculation features
The calculations, unlike classical system, are based on the possible combined metallurgical behaviors of the curves. They have had notably the following characteristics:
- Self-adaptation to the casting conditions without any necessary intervention of an operator thanks to its individual Self Adaptation Thresholds Parameters. No steel grade to introduce.
- Quantification the importance of the phenomena's to increase the reliability and the speed of detection, in combination with the use of a Critical Events Matrix
- Absolute Temperature Correction Algorithms, for thermal sensibility compensation.
- Easy integration of calculation algorithms for detection of other patterns.(ex: mold flux “rupture” in ferritic stainless).
- New algorithms can be incorporated easily if necessary.
- The calculations are releasing 3 possible levels of alarm to the operator, via speakers and on the screen.
Image and user interface features

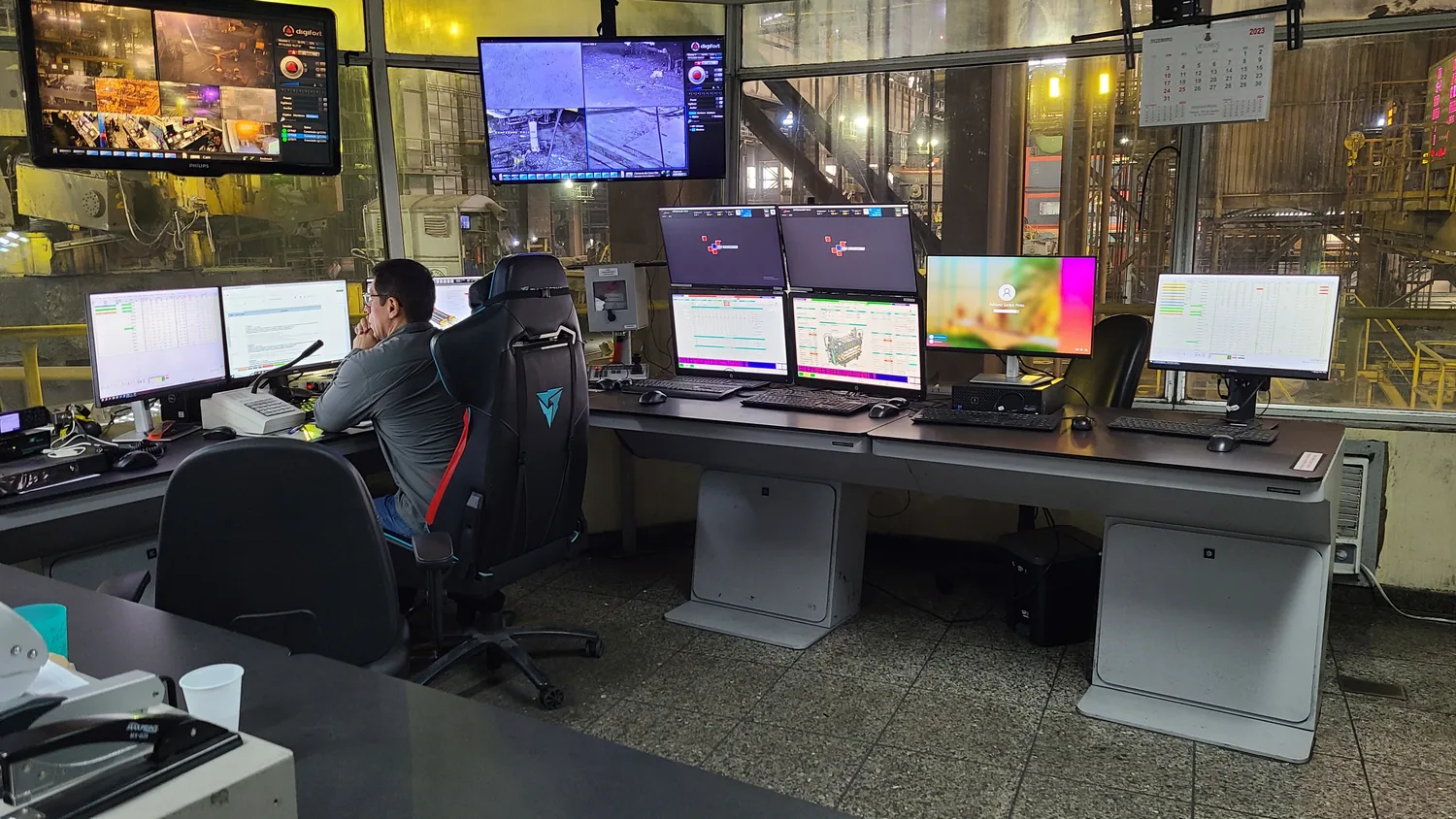

For each of the strands, a computer (INTEL Nuc type) is installed in the control room of the caster, with a 16:9 Full HD 1080P screen.
- This computer communicates with the database server installed in electric sub-station, via network (client/server).

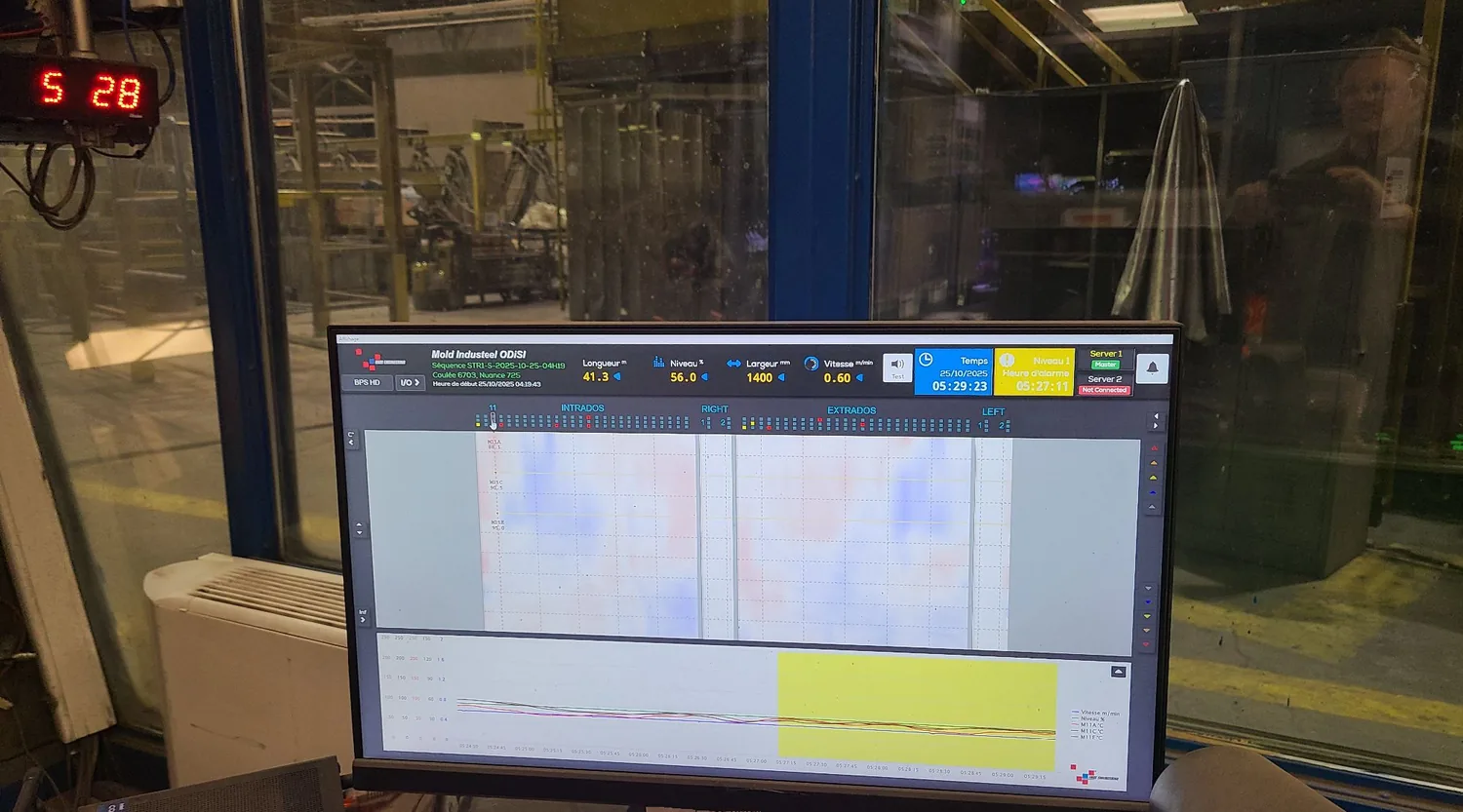

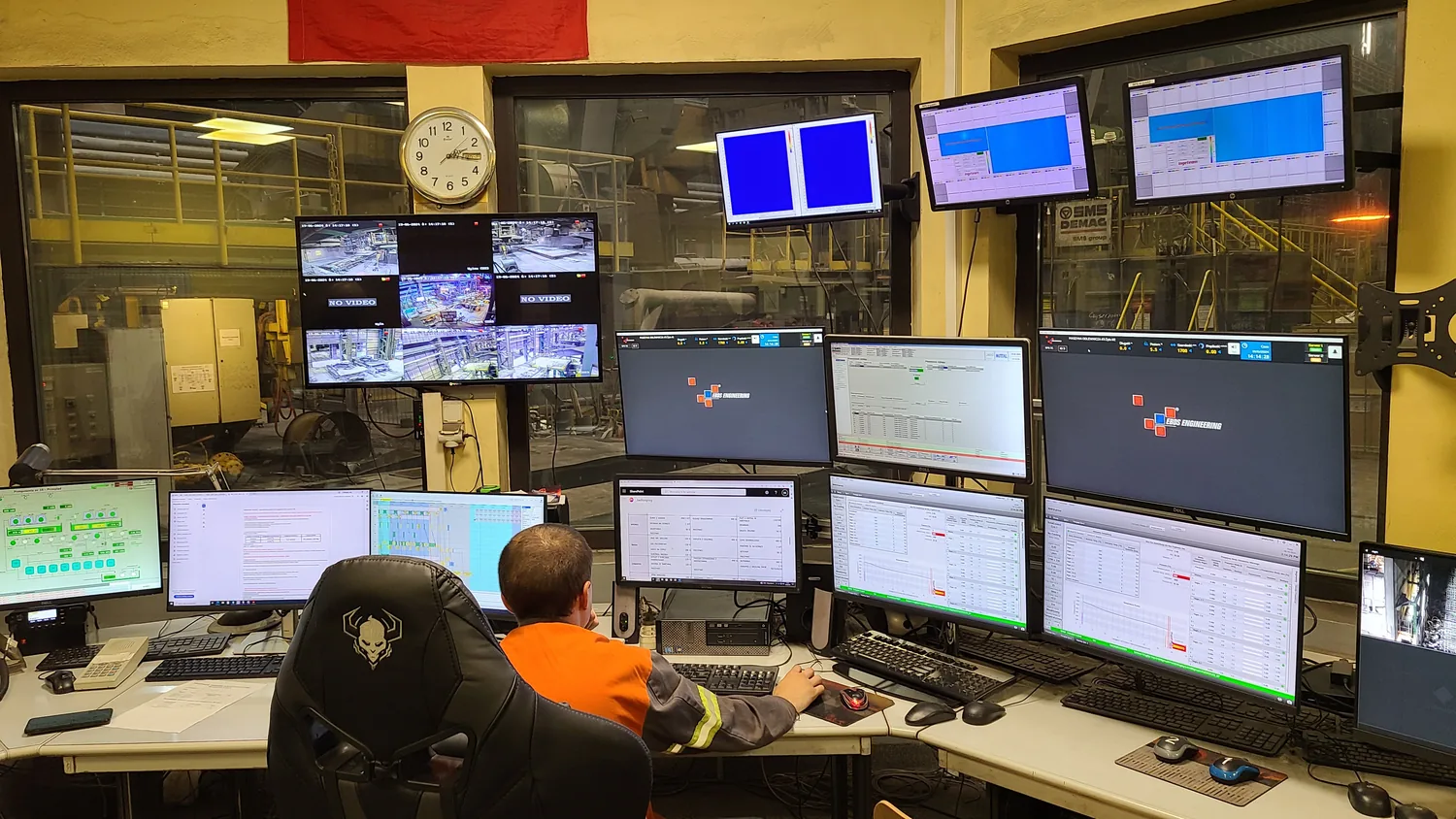

- This computer displays real-time image of the thermal exchanges in the mould that is moving similarly to the slab into the mould.
- Its width is of course continuously related to the casting format. It is so a real “wide window into the mould”.
- It also displays operational information, such as the casting speed, the mould level position, etc... And the operator uses this screen to interact with the BO detection system (temperature visualization, setting in/out of service of TC, visualization of previous alarms,...)
- The system has a trend zone for temperature display, and so much more features...
- The interface is done via Web Browser (Http, PHP,...)
It also displays operational informations, as the casting speed, the mould level position, etc... The system shows automatically the pair of TC curves that are in alarm. And so much more features...
Computer system/hardware
The EMERALD system runs under Windows Server 2012, on redundant computers (1 pair per strand).
The MySQL database runs in real-time on each server, and collects the data via an Applicom industrial network communication card.
The database stores permanently not only the data's, but also all calculation results, so that is allowed to come back, while on-line, on any event that happened, without interrupting the detection process.

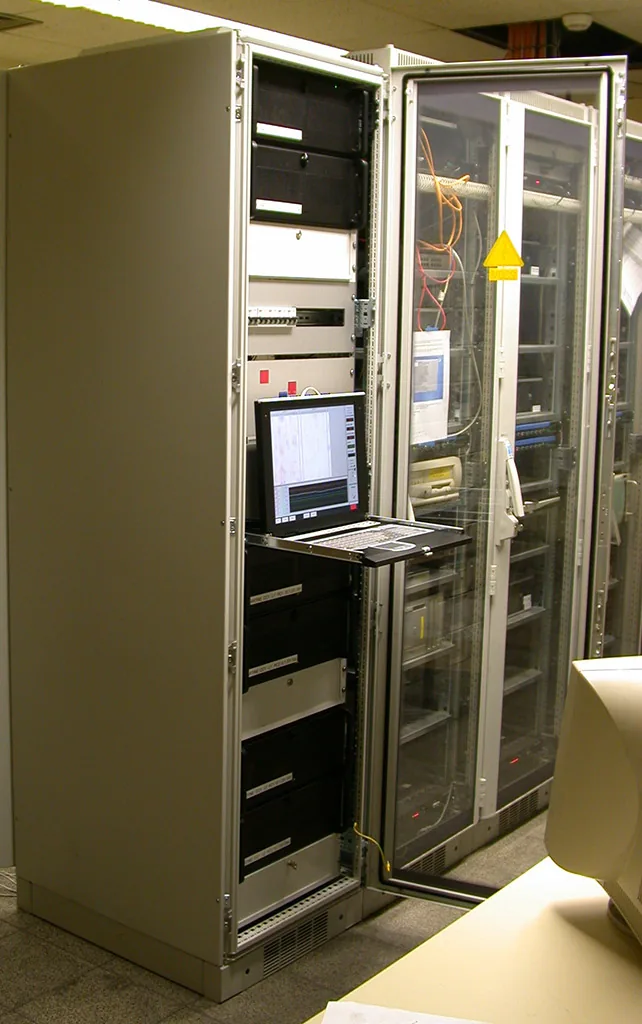

A console is available in the computer cabinet to operate all computers when necessary.
Data acquisition system
Even though it is possible to install a classical acquisition system (S7 ET-200 for example), EBDS Engineering has developed its own data acquisition system in order to maximize reliability and reduce maintenance costs of the hardware on the mould to the maximum.
The digitalization is done on the mould, with the help of an dedicated electronic data acquisition card
It allows to suppress the heavy compensation cables, and their plugs, by a twisted pair cable.
The long range transmission to the electrical substation is done by Profibus.
There is a SIEMENS S7-300 for each strand, for data concentration and
preparation, and to make them “available” on the industrial network.
CC#1 - DEMAG - 2 strands - LCAK, Peritectic, Trip grades - Emerald version 2017 - replacement of Demag BPS
CC#2 - DEMAG - 2 strands - LCAK & Peritectic grades - Emerald version 2017 - replacement of Demag BPS
CC#3 - 2 strands - LCAK & Peritectic grades - Emerald version 2017 - replacement of Japanese BOP system
1CC DEMAG slabs, 1 strand. stainless, wear resistant, strucural, cryogenic,... steels grades - Emerald 2017 Version.
CC#5 ITAL-IMPIANTI slabs, 2 strands, LCAK grades - '09 Version.
2 CC DEMAG slabs, 3 strands, LCAK grades - '09 Version.
(Site new closed!)
1CC VAI slab, 1 strand, stainless grades (ferritic and austenitic) - Emerald 2017 Version
CC#1 (slab - curved mould) - Medium/high Carbon - Electric Steel (GO/GNO) - Emerald 2017 Version
CC#2 (slab - Vertical bending) -Stainless/alloy steels - Emerald 2017 Version.
Engineering Steel Belgium
1CC DEMAG (2 strands) Blooms (310, 400, 500, 600mm diam), Carbon and low alloy steel (CrMo, CrNiMo,...) - '08 Version.
CC#1 - 2 strands - (DEMAG - vertical bending - LCAK + peritectic)
CC#2 - 2 strands - (DEMAG - vertical bending - LCAK + peritectic)
CC#1 - Sinosteel - 2 strands - LCAK & Peritectic grades - Emerald version 2017 - replacement of BaoSight BPS
METEC 2015 - Düsseldorf

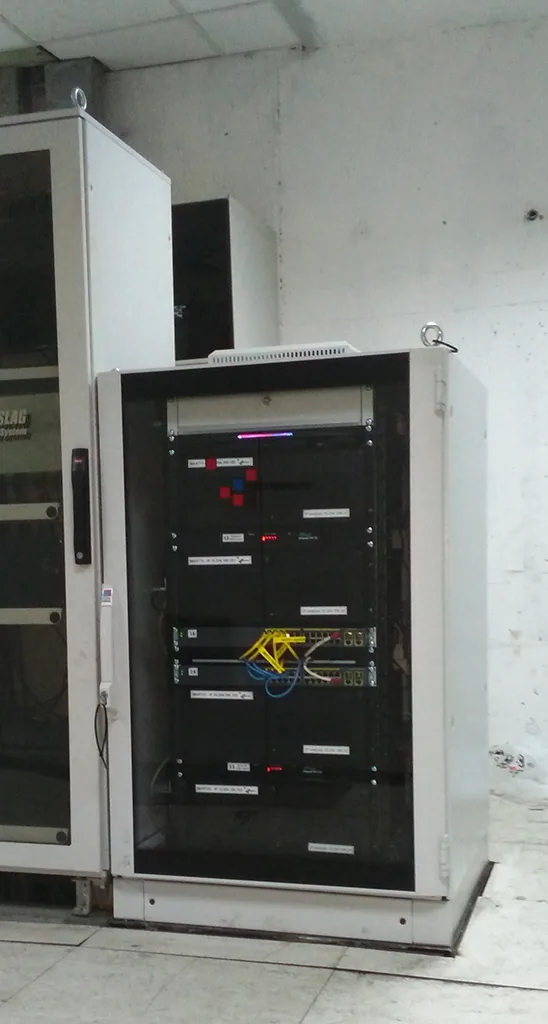

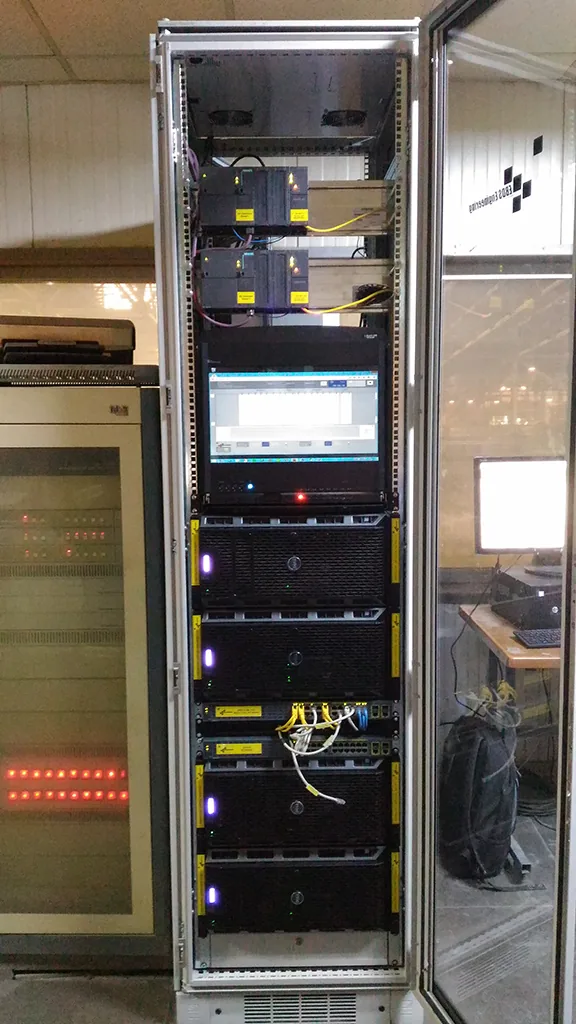

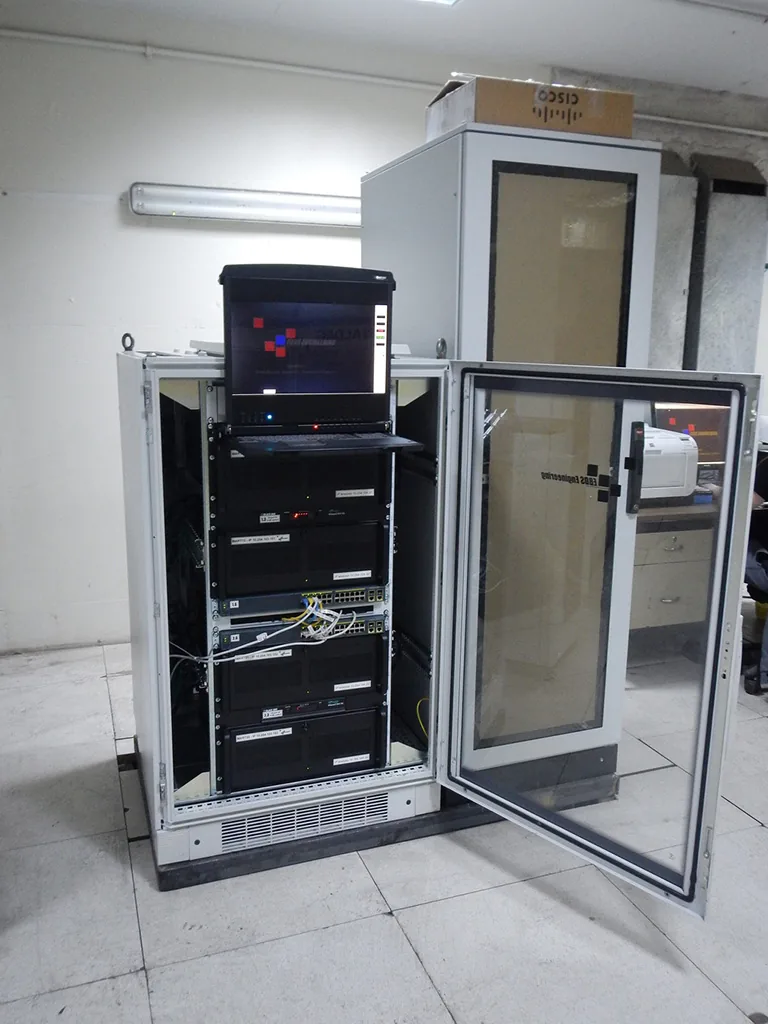

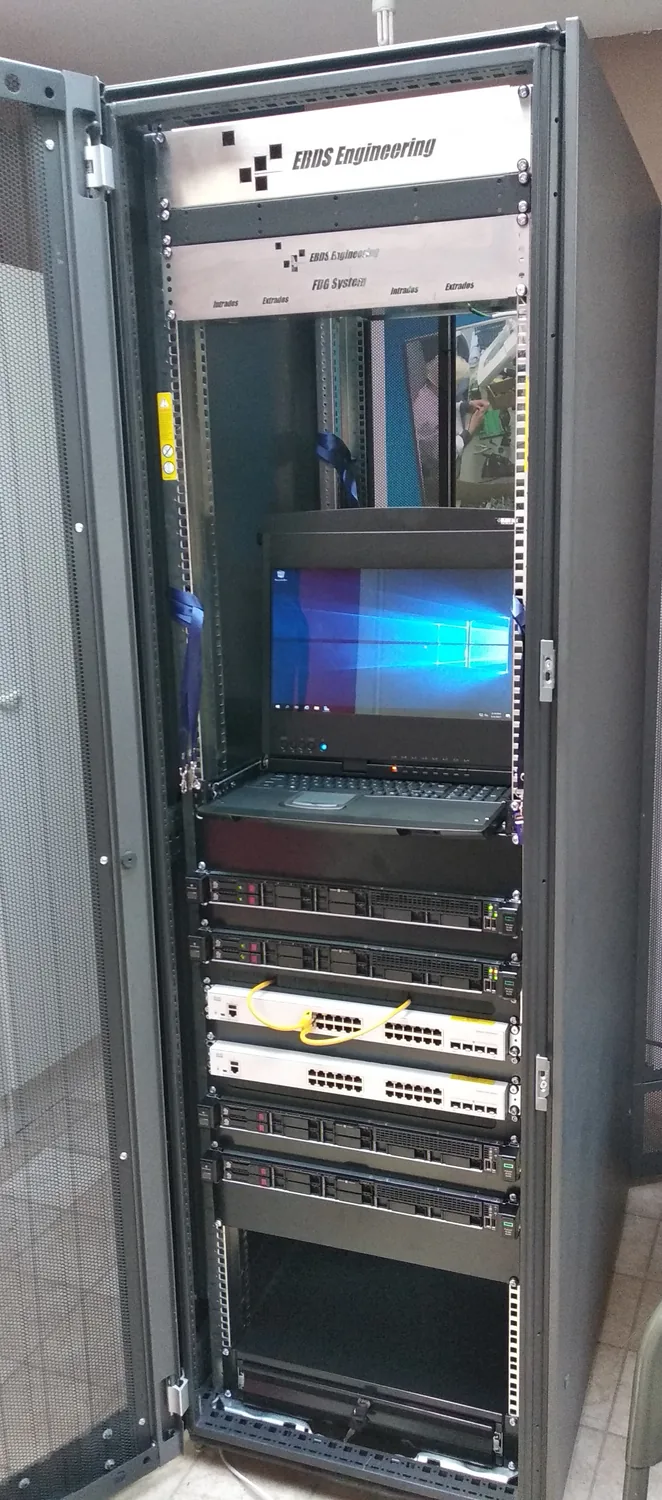

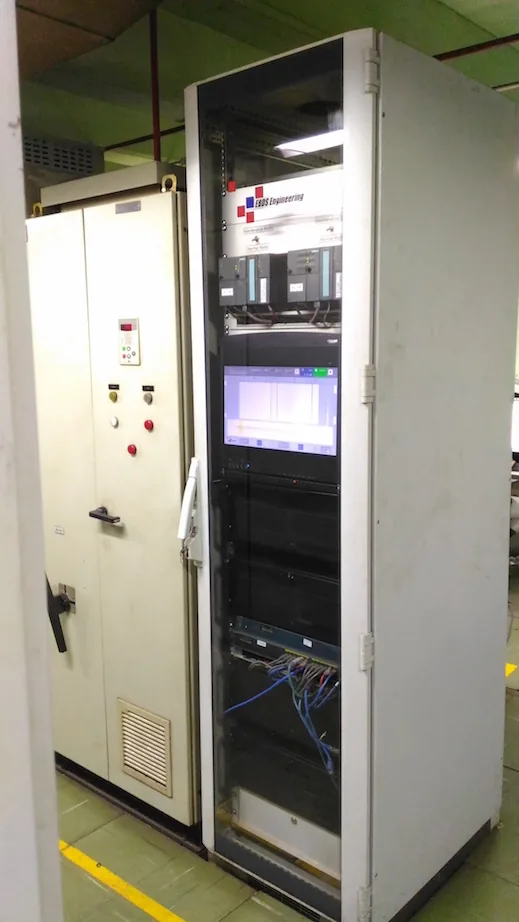

Computer cabinets

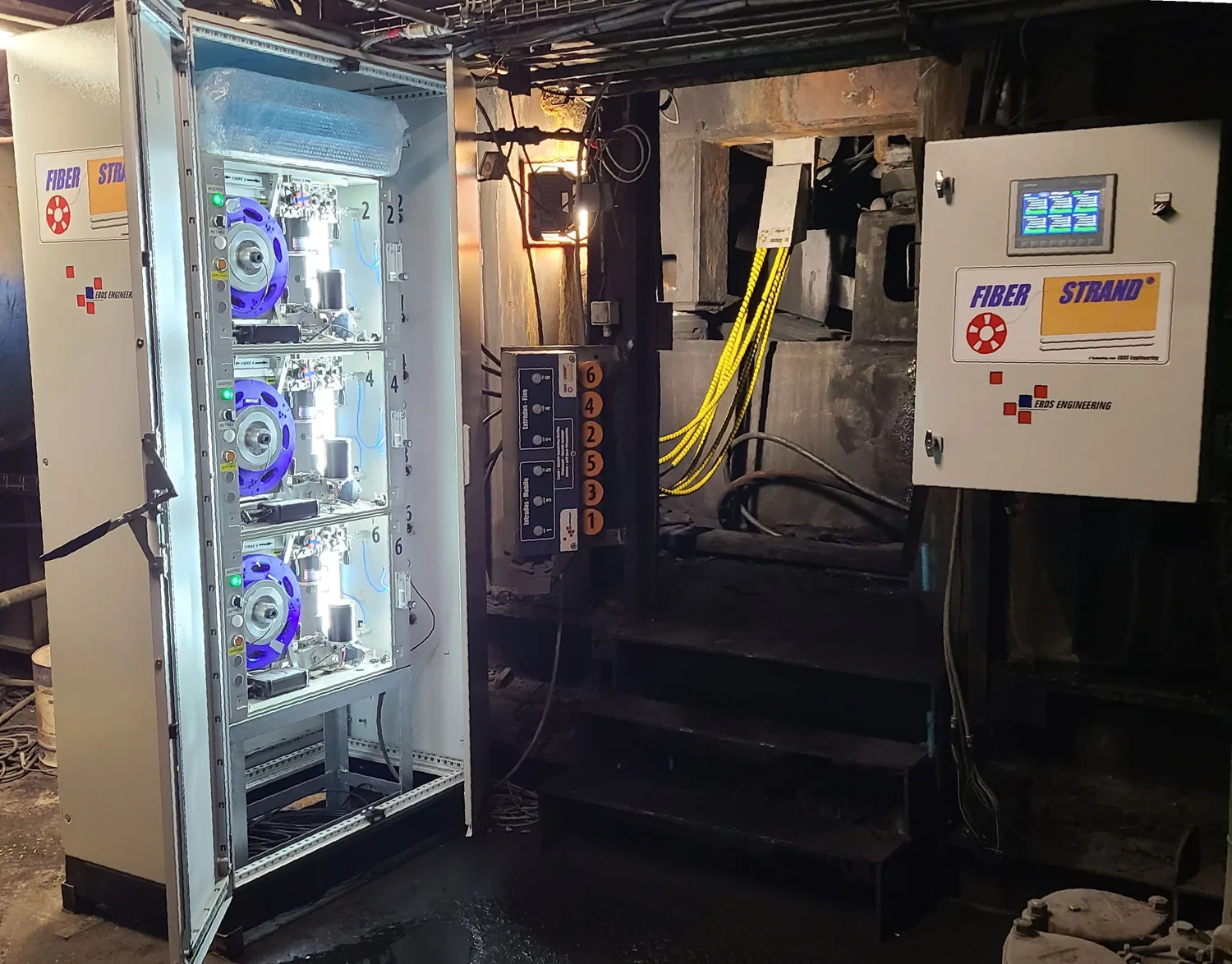

EBDS Engineering's "on-the-mould" acquisition system
